7121Q-52 St. Jude Medical, Durata™, Defibrillation lead 52 cm, Dual Shock, Optim, Ext/Ret Helix fixation , Connector: DF4, 21 cm Tip-to-Proximal Coil
$14,545.00
7121Q-52 St. Jude Medical, Durata™, Defibrillation lead 52 cm, Dual Shock, Optim, Ext/Ret Helix fixation , Connector: DF4, 21 cm Tip-to-Proximal Coil
$14,545.00
)
Product Description

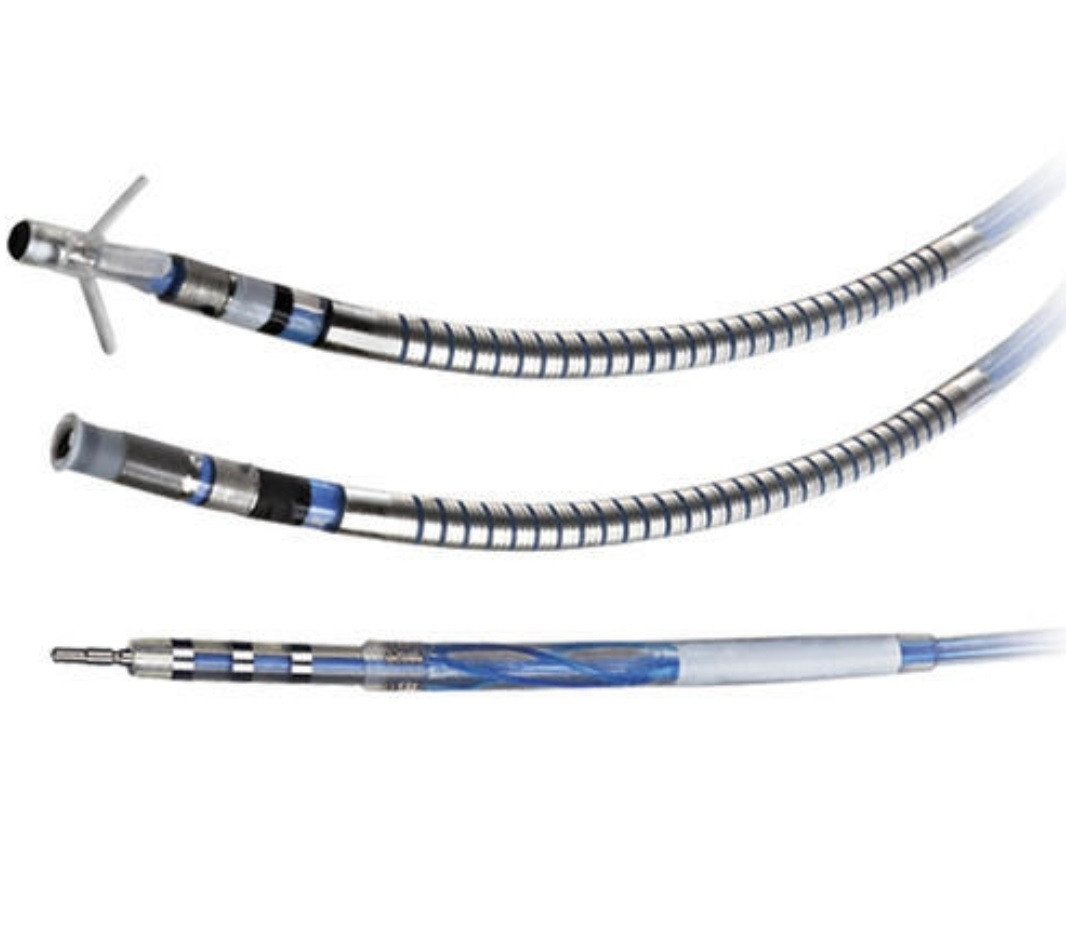

7121Q-52 St. Jude Medical, Durata™, Defibrillation lead 52 cm, Dual Shock, Optim, Ext/Ret Helix fixation, Connector: DF4, 21 cm Tip-to-Proximal Coil
Durata™ Defibrillation Lead Highlights
- The DF4 connector is designed to simplify implants by streamlining defibrillation connections into a single terminal pin and reducing the number of set screws
- Redundant conductors serve as a backup system in the unlikely event of a conductor failure
- Symmetrically aligned cables within the lead body and centrally located coil provide for additional protection to the inner coil
- Optim™ lead insulation – a chemical co-polymer that blends the best features of polyurethane and silicone for improved handling and increased durability
- Two innovative designs are intended to help prevent tissue ingrowth – flatwire technology provides a low profile for the defibrillation coils, and silicone backfilling completely fills the shock coil space
Contents: Defibrillation lead
| Model Number | Insulation | Fixation | Min. Introducer (F) | Shock Configuration | Sensing | Tip-to-Proximal Coil (cm) | Connector | Lengths (cm) |
| 7120 | Optim | Ext/Ret Helix | 7 | Dual-coil | True bipolar | 17 | DF1; IS-1 | 60; 65 |
| 7120Q | Optim | Ext/Ret Helix | 7 | Dual-coil | True bipolar | 17 | DF4 | 52; 58; 65 |
| 7121 | Optim | Ext/Ret Helix | 7 | Dual-coil | True bipolar | 21 | DF1; IS-1 | 60; 65; 75 |
| 7121Q | Optim | Ext/Ret Helix | 7 | Dual-coil | True bipolar | 21 | DF4 | 52; 58; 65 |
| 7122 | Optim | Ext/Ret Helix | 7 | Single-coil | True bipolar | N/A | DF1; IS-1 | 60; 65; 75 |
| 7122Q | Optim | Ext/Ret Helix | 7 | Single-coil | True bipolar | N/A | DF4 | 52; 58; 65 |
| 7170 | Optim | Tines | 7 | Dual-coil | True bipolar | 17 | DF1; IS-1 | 60; 65; 75 |
| 7170Q | Optim | Tines | 7 | Dual-coil | True bipolar | 17 | DF4 | 52; 58; 65 |
| 7171 | Optim | Tines | 7 | Dual-coil | True bipolar | 21 | DF1; IS-1 | 60; 65; 75 |
| 7171Q | Optim | Tines | 7 | Dual-coil | True bipolar | 21 | DF4 | 52; 58; 65 |
| 7172Q | Optim | Tines | 7 | Single-coil | True bipolar | N/A | DF4 | 52; 58; 65 |
