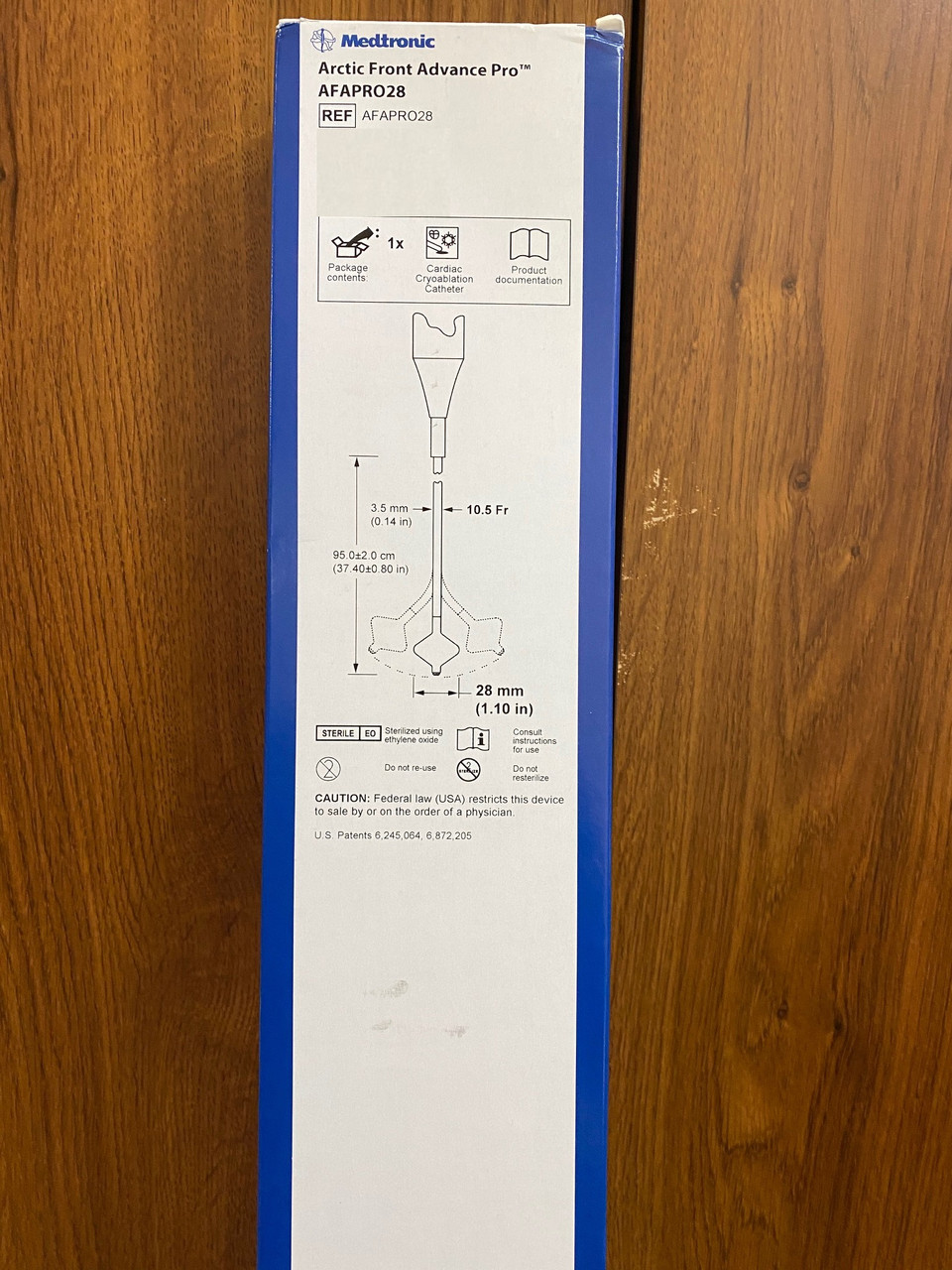

AFAPRO28 Arctic Front Advance Pro Cardiac Cryoablation Catheter, 10.5Fr x 28mm, 01 each
)
Product Description
AFAPRO28 Arctic Front Advance Pro Cardiac Cryoablation Catheter, 10.5Fr x 28mm, 01 each
The Arctic Front™ family of cryoballoon catheters are flexible, over-the-wire balloon catheters used to ablate cardiac tissue. The cryoballoons are designed for use with the Achieve™ Mapping Catheters, the FlexCath™ Advance Steerable Sheath and the CryoConsole™.
Arctic Front was the first anatomical balloon technology using cryo energy on the market. The balloon featured four jets.
Arctic Front Advance™ features improved temperature uniformity with EvenCool™ cryo technology (8 jets), enabling more contiguous lesions.
Built on the proven Arctic Front platform, Arctic Front Advance Pro™ is the newest product in the cryoballoon portfolio. It features a 40% shorter tip and is designed to enable improved visualization of time to isolation (TTI)
ARCTIC FRONT ADVANCE PRO CRYOBALLOON
The next generation Arctic Front Advance Pro™ Cryoballoon was developed to allow for improved time-to-isolation visualization1-6, which enables physician-tailored dosing protocols7 and may result in improved procedural efficiency such as decreased procedure time without compromising efficacy
1. Guide wire lumen. Facilitates injection of contrast to confirm occlusion of the vein. Placement of the guide wire through the lumen helps direct the catheter to the targeted vein.
2. Outer balloon. Safety feature to contain the refrigerant in the unlikely event that the inner balloon is compromised. The outer balloon is maintained under constant vacuum.
3. Inner balloon. Refrigerant is delivered into the inner balloon and vacuumed back into the console to achieve the freezing process.
4. Pull wires. Help deflect the catheter 45 degrees in either direction.
5. Thermocouple. Monitors the temperature of the vaporized refrigerant.
6. Injection tube. Refrigerant is distributed toward the inner balloon surface through the injection tube.
