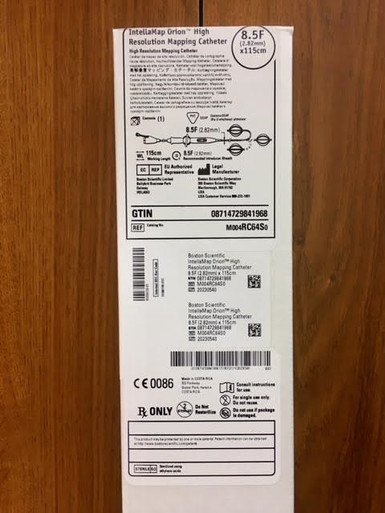

Boston Scientific M004RC64S0 INTELLAMAP ORION High- Resolution Mapping Catheter 115cm
Product Description
INTELLAMAP ORION High-Resolution Mapping Catheter 115cm, OF 8.5Fr, 64 Electrodes, Curve 180 bidirectional Deployment Range 3-22 mm
Designed to work with the RHYTHMIA™ Mapping System, the INTELLAMAP ORION™ Mapping Catheter brings unprecedented resolution and accuracy to mapping procedures.
The INTELLAMAP ORION™ Mapping Catheter has 64 electrodes – 3x more* electrodes than standard mapping catheters – so you can collect more data more rapidly. Its uniquely flat, printed electrodes are 8x smaller** than conventional mapping catheter electrodes and designed to maximize contact and minimize far field signals. Combined with 2.5 mm center-to-center electrode spacing, the ORION reveals sharp, high-quality signals that allow for accurate and precise localization of even the most complex arrhythmias.
UPN | Order Number | Usable Length | OD (F) | Number of Electrodes | Curve | Deployment Range | |
---|---|---|---|---|---|---|---|
High- Resolution Mapping Catheter |
M004 RC64S 0 | RC64S | 115 cm | 8.5 | 64 | 180, bidirectional |
3-22 mm |
