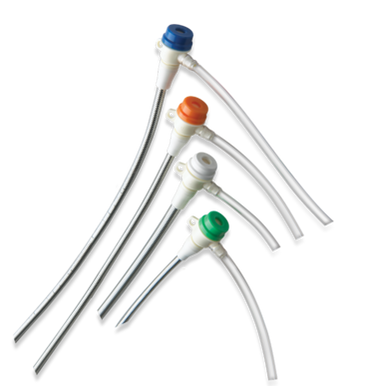

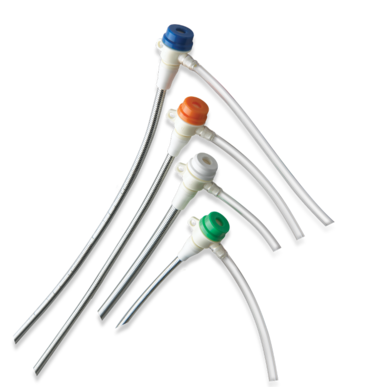

Super Arrow-Flex ® Sheath Introducer Set CL-07045 10Fr. x 45cm
$1,299.00
){kind=icon}
Product Description
Super Arrow-Flex ® Sheath Introducer Set without Wire Guide - 10 French / 45 cm
| CL-07045 | 10 Fr. | 45 cm |
Packaging: 5 each per box
The Arrow ® Percutaneous Sheath Introducer is intended for use in the hospital catheterization laboratory for the percutaneous introduction of various devices into veins and/or arteries in a variety of diagnostic and therapeutic procedures. The kit includes the following (Quantity: Item Description):
Key features include:
1: Super Arrow-Flex Sheath with Integral Side Port /Hemostasis Valve and attached 3-Way Stopcock
1: Vessel Dilator with SnapLock™ Feature
1: Obturator Cap
| Color Code | Item Number | Sheath Size | Sheath Length | Set per Case |
| Light Grey | CP-07511-P | 5 Fr. | 7.5 cm | 10 |
| Light Grey | CP-07511 | 5 Fr. | 11 cm | 10 |
| Green | CP-07611-P | 6 Fr. | 7.5 cm | 10 |
| Green | CP-07611 | 6 Fr. | 11 cm | 10 |
| Orange | CP-07711 | 7 Fr. | 11 cm | 10 |
| Blue | CP-07811 | 8 Fr. | 11 cm | 10 |
| Dark Grey | CP-07911 | 9 Fr. | 11 cm | 10 |
| White | CP-07011 | 10 Fr. | 11 cm | 10 |
| 5 Fr. Introducers | ||||
| Medium Grey | CL-07511 | 5 Fr. | 11 cm | 10 |
| CL-07524 | 5 Fr. | 24 cm | 5 | |
| CL-07545 | 5 Fr. | 45 cm | 5 | |
| CL-07565 | 5 Fr. | 65 cm | 5 | |
| CL-07590 | 5 Fr. | 90 cm | 2 | |
| 6 Fr. Introducers | ||||
| Green | CL-07611 | 6 Fr. | 11 cm | 10 |
| CL-07624 | 6 Fr. | 24 cm | 5 | |
| CL-07635 | 6 Fr. | 35 cm | 5 | |
| CL-07645 | 6 Fr. | 45 cm | 5 | |
| CL-07665 | 6 Fr. | 65 cm | 5 | |
| CL-07690 | 6 Fr. | 90 cm | 2 | |
| 7 Fr. Introducers | ||||
| Orange | CL-07711 | 7 Fr. | 11 cm | 10 |
| CL-07724 | 7 Fr. | 24 cm | 5 | |
| CL-07735 | 7 Fr. | 35 cm | 5 | |
| CL-07745 | 7 Fr. | 45 cm | 5 | |
| CL-07765 | 7 Fr. | 65 cm | 5 | |
| CL-07780 | 7 Fr. | 80 cm | 2 | |
| CL-07700 | 7 Fr. | 100 cm | 2 | |
| 8 Fr. Introducers | ||||
| Blue | CL-07811 | 8 Fr. | 11 cm | 10 |
| CL-07824 | 8 Fr. | 24 cm | 5 | |
| CL-07835 | 8 Fr. | 35 cm | 5 | |
| CL-07845 | 8 Fr. | 45 cm | 5 | |
| CL-07865 | 8 Fr. | 65 cm | 5 | |
| CL-07880 | 8 Fr. | 80 cm | 2 | |
| CL-07800 | 8 Fr. | 100 cm | 2 | |
| 9 Fr. Introducers | ||||
| Fark Grey | CL-07911 | 9 Fr. | 11 cm | 10 |
| CL-07924 | 9 Fr. | 24 cm | 5 | |
| CL-07965 | 9 Fr. | 65 cm | 5 | |
| CL-07980 | 9 Fr. | 80 cm | 2 | |
| CL-07900 | 9 Fr. | 100 cm | 2 | |
| 10 Fr. Introducers | ||||
| White | CL-07011 | 10 Fr. | 11 cm | 10 |
| CL-07024 | 10 Fr. | 24 cm | 5 | |
| CL-07035 | 10 Fr. | 35 cm | 5 | |
| CL-07045 | 10 Fr. | 45 cm | 5 | |
| CL-07065 | 10 Fr. | 65 cm | 5 | |
| CL-07080 | 10 Fr. | 80 cm | 2 | |
| 11 Fr. Introducers | ||||
| Yellow | CL-71165 | 11 Fr. | 65 cm | 5 |
