- TERUMO DC-PY1515UA1 OTW Takeru PTCA Ballon Dilatation Catheter, Diameter 1.5mm, Lenght 15mm, Box of 01
TERUMO DC-PY1515UA1 OTW Takeru PTCA Ballon Dilatation Catheter, Diameter 1.5mm, Lenght 15mm, Box of 01
$700.00
TERUMO DC-PY1515UA1 OTW Takeru PTCA Ballon Dilatation Catheter, Diameter 1.5mm, Lenght 15mm, Box of 01
$700.00
Product Description
TERUMO DC-PY1515UA1 OTW Takeru PTCA Ballon Dilatation Catheter, Diameter 1.5mm, Lenght 15mm, Box of 01
RX Takeru PTCA Dilatation Catheter
PRODUCT DESCRIPTION
- OTW Takeru is a Percutaneous Transluminal Coronary Angioplasty (PTCA) Balloon Dilatation Catheter.
- OTW Takeru is an over the wire (OTW) type and the maximum diameter of the compatible guidewire is 0.014 inches (0.36 mm).
- The shaft consists of an outer tube and an inner tube ( co-axial lumens structure).
- The outer lumen is used for inflation and deflation of the balloon with contrast medium diluted with saline solution.
- The inner lumen (the guidewire lumen; from the distal tip to the guidewire port) is for inserting a compatible guidewire to facilitate advancing the catheter through the stenotic lesion or stent to be dilated.
- Inside the balloon, one (balloon diameter of 1.5 mm) or two (balloon diameters of 2.0-5.0 mm) radiopaque marker(s), which indicate the working length of the balloon, are placed to guide the physician for positioning the balloon properly in the targeted lesion under fluoroscopy.

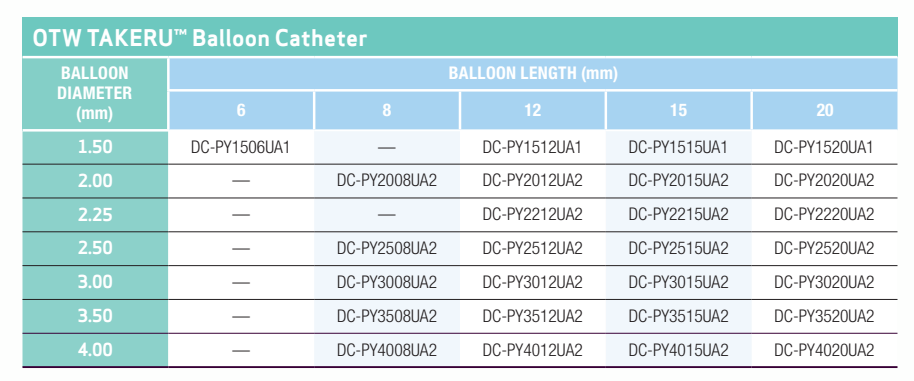

- OTW Takeru is available in various balloon sizes by its diameter and length at recommended inflation pressures (Nominal pressure).
- Upon inflation, the balloon diameter varies according to the inflating pressure.
