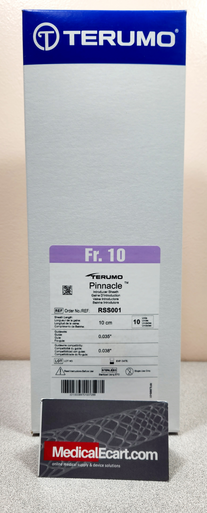

Terumo RSS001 Pinnacle ® Introducer Sheath, 10Fr x 10 cm x 0.35", Box of 10
$958.80
![Pin It](http://pinterest.com/pin/create/button/?url=https://www.medicalecart.com/products/terumo-rss001-pinnacle-introducer-sheath-10fr-x-10-cm-x-0-35-box-of-10.html&media=https://cdn10.bigcommerce.com/s-x81fqsb/products/8926/images/12253/Terumo_RSS001_Pinnacle_Introducer_Sheath__09230.1660780454.1280.1280.png?c=2&description=MedicalEcart - Terumo RSS001 Pinnacle ® Introducer Sheath, 10Fr x 10 cm x 0.35", Box of 10, $958.80 (https://www.medicalecart.com/products/terumo-rss001-pinnacle-introducer-sheath-10fr-x-10-cm-x-0-35-box-of-10.html))
Product Description
Terumo RSS001 Pinnacle ® Introducer Sheath, 10Fr x 10 cm x 0.35", Box of 10
- Femoral Access Sheath for Coronary or Peripheral Procedures available in 4-11F, 10 or 25cm lengths
- Smooth transition of guidewire to dilator and dilator-to-sheath
- Kink resistant design
- Small OD and large ID minimizes the size of the access site without compromising ease of device passage
- Snap-on dilator lock prevents backout during insertion
PINNACLE Introducer Sheaths - Peripheral Applications
|
Product Code |
Length |
Inner Diameter |
Dilator Protuding Length |
Mini Guidewire Diameter |
Mini Guidewire Length |
|
RSS401 |
10 |
4 |
2.5 |
.035* |
45 |
|
RSS501 |
10 |
5 |
2.5 |
.035* |
45 |
|
RSS601 |
10 |
6 |
2.5 |
.035* |
45 |
|
RSS701 |
10 |
7 |
2.5 |
.035* |
45 |
|
RSS801 |
10 |
8 |
2.5 |
.035* |
45 |
|
RSS901 |
10 |
9 |
2.5 |
.035* |
45 |
|
RSS001 |
10 |
10 |
2.5 |
.035* |
45 |
|
RSS101 |
10 |
11 |
2.5 |
.035* |
45 |
|
RSS403 |
10 |
4 |
2.5 |
|
|
|
RSS503 |
10 |
5 |
2.5 |
|
|
|
RSS603 |
10 |
6 |
2.5 |
|
|
|
RSS703 |
10 |
7 |
2.5 |
|
|
|
RSS803 |
10 |
8 |
2.5 |
|
|
|
RSS903 |
10 |
9 |
2.5 |
|
|
|
RSS003 |
10 |
10 |
2.5 |
|
|
|
RSS103 |
10 |
11 |
2.5 |
|
|
|
RSS505 |
25 |
5 |
2.5 |
|
|
|
RSS605 |
25 |
6 |
2.5 |
|
|
|
RSS705 |
25 |
7 |
2.5 |
|
|
|
RSS805 |
25 |
8 |
2.5 |
|
|
|
RSS905 |
25 |
9 |
2.5 |
|
|
|
RSS005 |
25 |
10 |
2.5 |
|
|
|
RSS105 |
25 |
11 |
2.5 |
|
|
*Mini stainless steel spring coil guidewire included. Maximum guidewire compatible size: 0.035" for 4 Fr, 0.038" for all others
